SoftStart Home- The Best A/C Soft Starter For Residential Central Air Conditioners and Heat Pumps
The One and Only SoftStart Home – accept no imitations! 🙂
Regular Price: $399
Discount Price Shown at Checkout.
Select the Quantity, then click Buy SoftStart Home

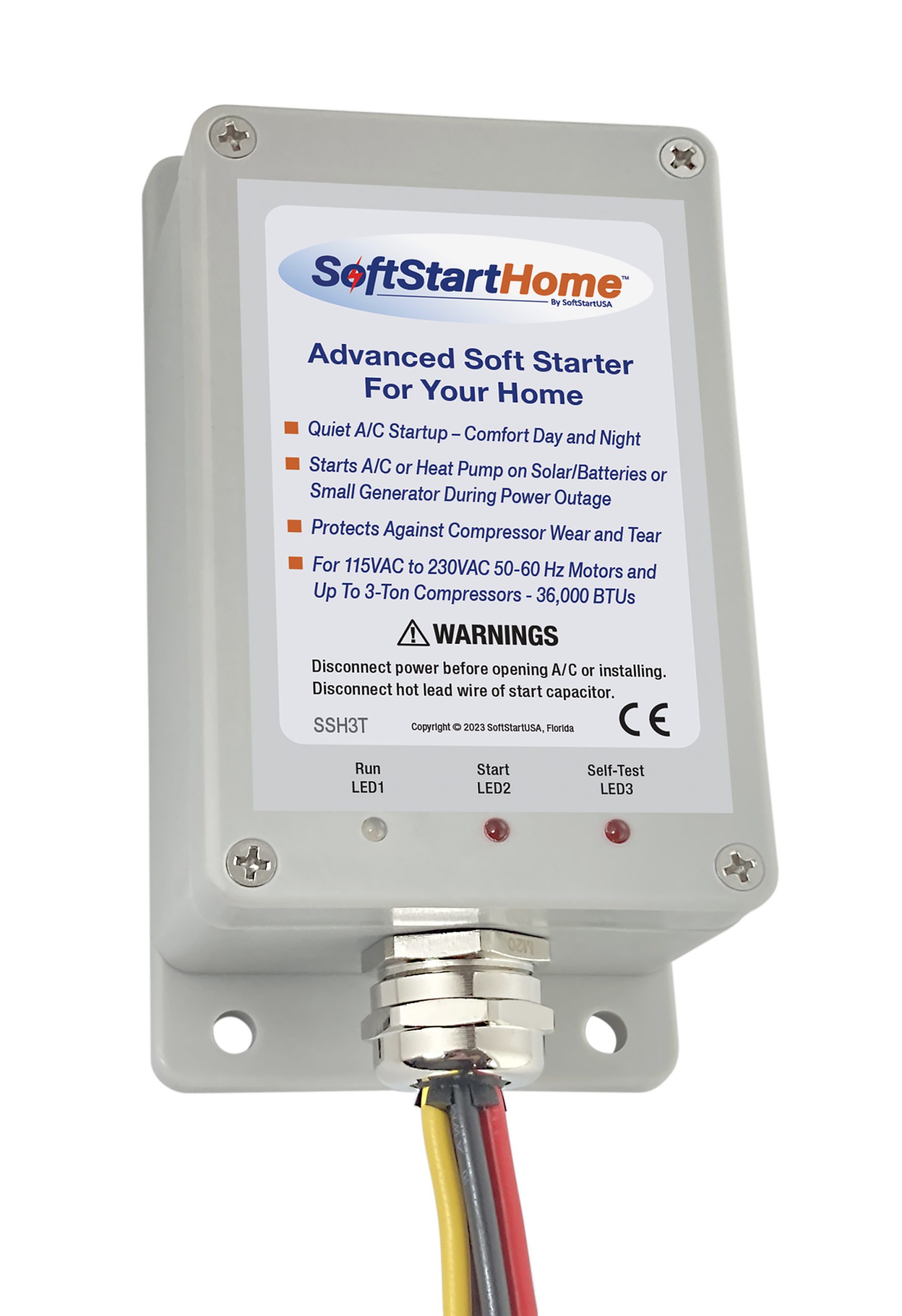

A SoftStart Home soft starter will drastically improve the operation of your A/C or heat pump.
How exactly does it do that? The SoftStart Home reduces A/C and heat pump startup demand by up to 70%!
Without that initial jolt, your central A/C unit or heat pump will minimize any knocking or shuddering on every start! It will start quietly, and keep you at the temperature you want – day and night.
A SoftStart Home soft starter on a central air conditioner/heat pump lets you stay comfortable by allowing the A/C and heat pump to run when using backup power. How? SoftStart Home reduces A/C and heat pump startup demand by up to 70%! It won’t MAKE power, but it allows you to START and RUN your cooling or heating with a small generator or battery backup power. SoftStart Home™ lets you: – Keep cool or warm with A/C or heat pump – Run the refrigerator, freezer, well pump, lights and other vital devices – Live safely and comfortably until the main power is restored- Quiet A/C Startup – Comfort Day and Night.
- Protects Against Compressor Wear and Tear.
- Starts A/C or Heat Pump On Generator During Power Outage.
- For 115V-230V A/Cs and Heat Pumps; Up To 6-Ton Compressors; 72,000 BTUs.
- Free Technical Support.
- FREE Installation Kit, Terminal Connectors, Screws etc.
- FREE 3-Year Warranty (Requires Registration).
- FREE Shipping On All Orders To USA (UPS) and Canada (DHL).
Start Your Home A/C With SoftStart Home 6-Ton Soft Starter, With FREE Install Kit
- No More Flickering House Lights When Your A/C Starts
- Get A Restful Night’s Sleep – No More Thumping In The Night As Your A/C Kicks In
- Easily Starts Your A/C During Power Emergencies with Generator or Solar Back-up Power
- Prolongs the Life Of Your A/C Compressor
- Easy Install With Our “White Gloves Phone Support”
- Standard 1-Year Warranty; 3-Year Warranty (available with registration)
- 115V to 230V, Up to 6-Ton Compressors (72,000 BTUs)
- FREE Installation Kit, Terminal Connectors, Screws etc.
Easy To Install
1.
DETERMINE A LOCATION
Find a good spot under the cover of the central A/C unit. The SoftStart Home unit should be vertically installed securely on a panel with wires at the bottom.
2.
FASTEN TO DESIRED LOCATION
Each SoftStart Home unit comes complete with
hardware fasteners, and is also equipped with a heavy-duty adhesive bonding pad to mount to most any type of surface.
3.
ONLINE WIRING DIAGRAMS, VIDEOS, AND LIVE HELP
Get wiring diagrams at:
https://softstarthome.com/diagrams/
Easily Installs Under A/C
Covers (Location depends on A/C or heat pump design. Size of SoftStart Home unit not shown to scale.)
Technical Specifications – SoftStart Home A/C Starter
- Model number: SSHM6T
- Nominal working voltage: 110VAC (90~135VAC) & 220VAC (187~266VAC), 1 phase
- Power consumption: Less than 3W
- Maximum continuous working voltage: 135VAC/266VAC
- Maximum continuous working current: 42A Over current limit: 50A/1 minute
- Maximum non-repetitive inrush current: 200A (<20 ms)
- Maximum surge current: 130A (<350 ms) Soft start-up time: 1±0.5s
- Current consumption: 48mA (capacitive 110VAC, 220VAC)
- Operation hours: More than 45,000 hours (rated working temperature)
- Effective soft start on/off service: >100,000 times (soft-start interval not less than 3 minutes)
- Insulation resistance between housing and chassis: > 300 MΩ Withstand voltage between housing and chassis: >3000VAC in 1 minute
- Shock resistance: More than 200m/s2 and 11ms
- Anti-vibration: 10~55mm (double amplitude, 1.5mm)
- Protection restart time interval: 3 minutes
- Working temperature: -40ºF to 185ºF (-40ºC to 85ºC)
- Working humidity: 0~95% RH
- Dimensions: 7.72 x 3.54 x 2.60 in. (196 mm × 90 mm × 66 mm)
- Weight: 1 lb.13 oz. (0.82 kg)
- Warranty: One-year limited warranty (standard); Two-year limited warranty (when registered)
Dimensions

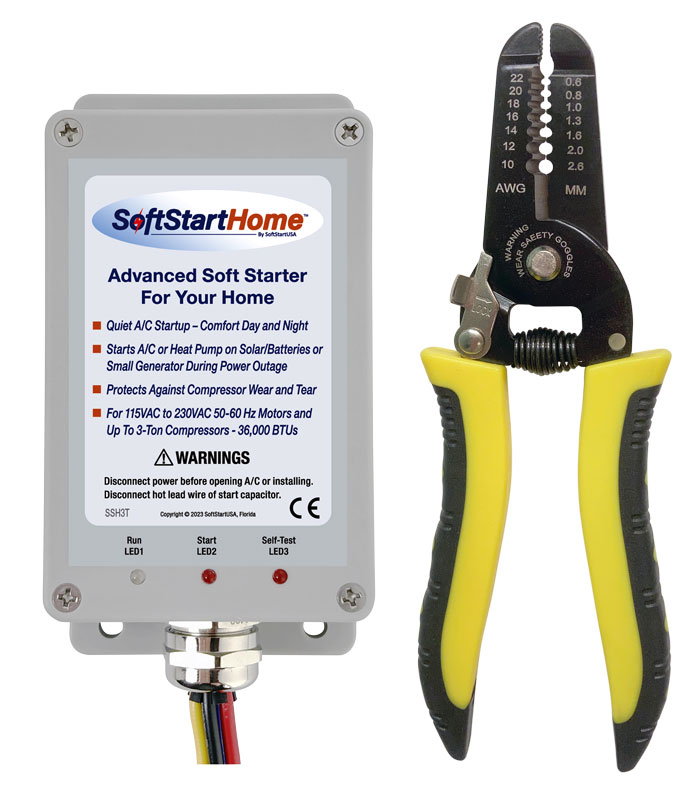

Complete Product Includes:
1. Model SSHM6T air conditioner soft starter with wiring (5 wires)
2. Instruction guide
3. Complete accessory kit:
– Wiring connectors
– Zip ties
– Hardware fasteners
Don’t Want To Install The SoftStart Home Yourself?
No Problem. Have a Pro do it for you. Simply add Concierge Service to your order.
Here are the steps involved.
Step 1:
– Add the SoftStart Concierge service to your order. You’ll need to add 1 SoftStart Concierge order per soft start in your order. We’ll contact you within 1 business day to schedule your installation.
Step 2:
– On the call, we’ll figure out the most convenient time and date for one of our local, pre-screened professionals to install your soft start product per our exact guidelines.
Step 3:
– The installation can take place wherever you designate, or at a local RV dealer outlet, if appropriate.
We handle payments to the installer to ensure you are 100% satisfied that your soft start unit works perfectly.
All you do is…
– Give SoftStart Home product to the installer when they arrive at your location.
– Test the product to assure it works and is operating as expected after the installation.
– Relax and enjoy the cool (or warm) comfort of your home.
